827-9999-904 heatsink, top (Rockwell Collins)

โมเดล 3D จากแบบ: วัดทุกขนาดของแบบบนโมเดล

PDF เวกเตอร์แบบอเมริกัน (นิ้ว)

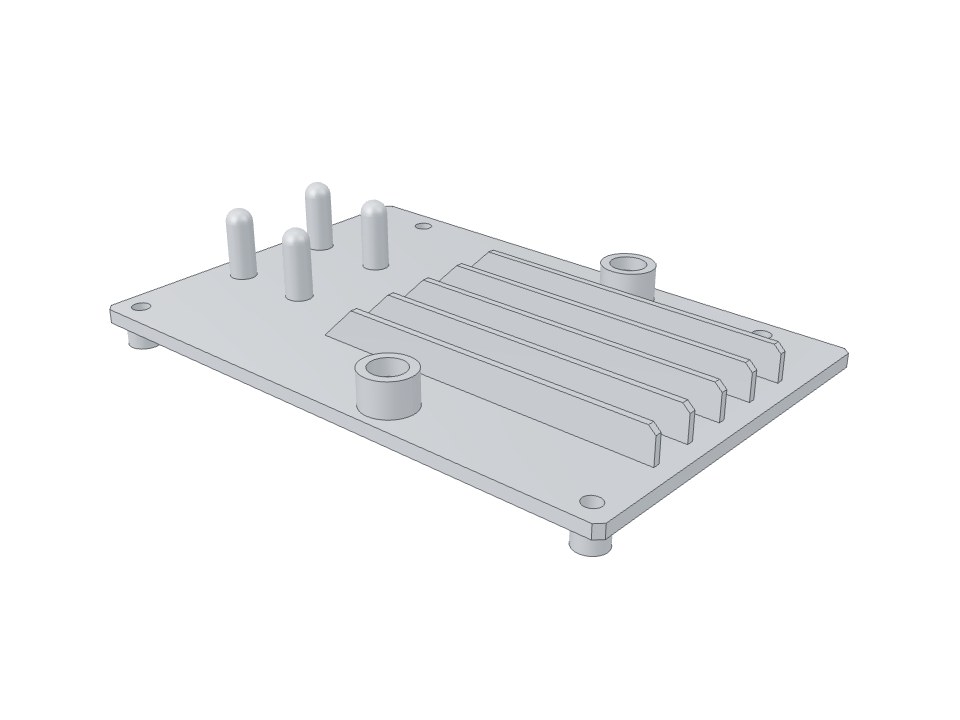

3D model: 827-9999-904 heatsink, top (Rockwell Collins)

ลากด้วยเมาส์หรือนิ้วเพื่อหมุนโมเดล

ระดับซับซ้อน฿850
ขนาดที่ตรวจแล้ว58
เวลาสร้าง20นาที

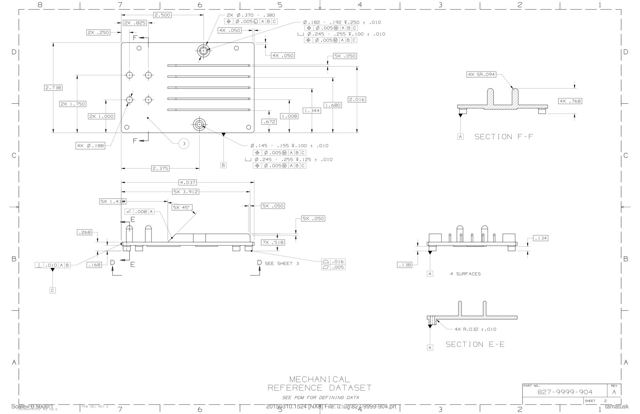

Drawing: 827-9999-904 heatsink, top (Rockwell Collins)
แบบ

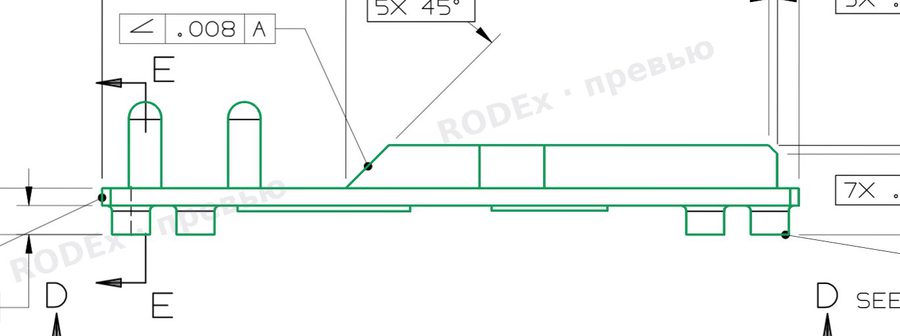

Model overlaid on the drawing: 827-9999-904 heatsink, top (Rockwell Collins)
โมเดลซ้อนบนแบบ
คำถาม

The depth of one hole can be read two ways on the sheet. Both variants are built — you pick one on the order page.

เราทำอย่างไร

Built both readings — you choose on the order page, no rebuild needed.

ผล

เสร็จแล้ว: สร้างโมเดลและตรวจทุกขนาดแล้ว

แบบต้นฉบับ — แหล่งเปิด เราไม่เผยแพร่แบบของลูกค้าในคลัง
