D1001756 v1 — aLigo, TCS, Upper Custom Connector Bracket (6061-T6)

3D model from a drawing: every drawing dimension measured on the model.

vector PDFAmerican drawing (inches)

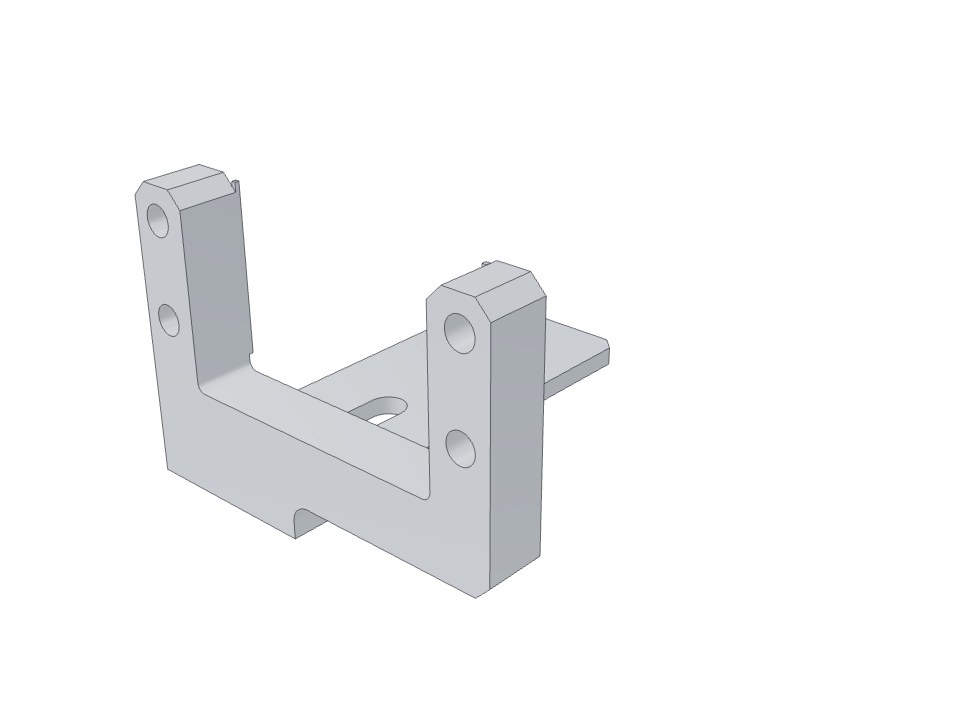

3D model: D1001756 v1 — aLIGO TCS upper custom connector bracket (6061-T6)

Drag with the mouse or a finger to rotate the model.

ClassMedium$15
Dimensions checked35
Build time16min

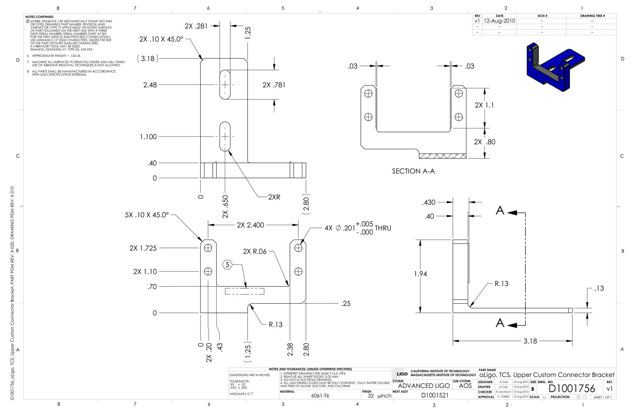

Drawing: D1001756 v1 — aLIGO TCS upper custom connector bracket (6061-T6)
Drawing

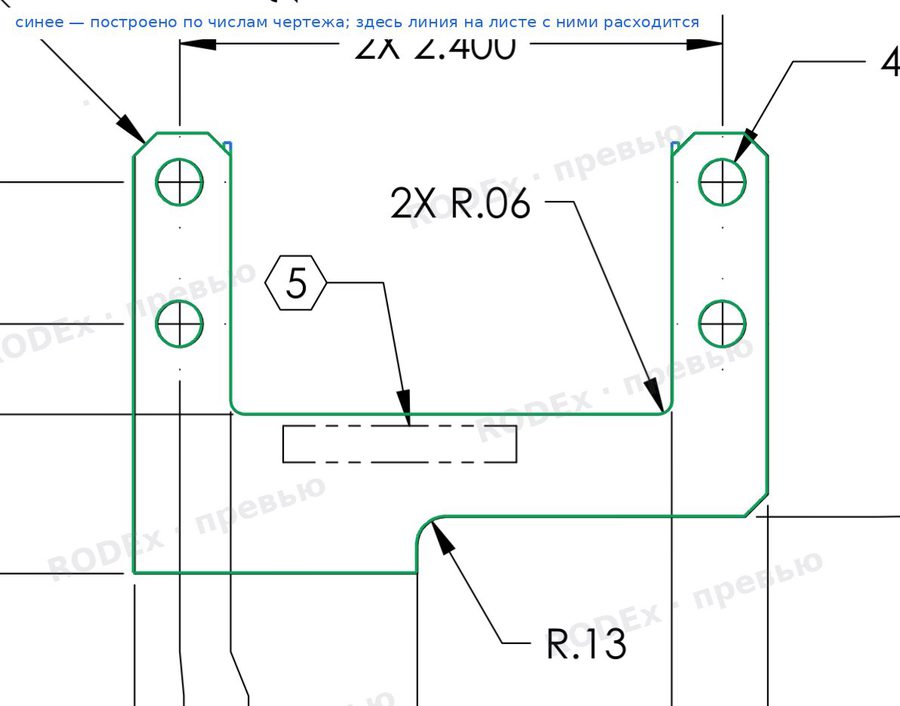

Model overlaid on the drawing: D1001756 v1 — aLIGO TCS upper custom connector bracket (6061-T6)
Model over the drawing

Source drawing — open source. We never publish client drawings in the library.
