aLIGO sprocket bracket D060001

3D model from a drawing: every drawing dimension measured on the model.

vector PDFmachiningAmerican drawing (inches)

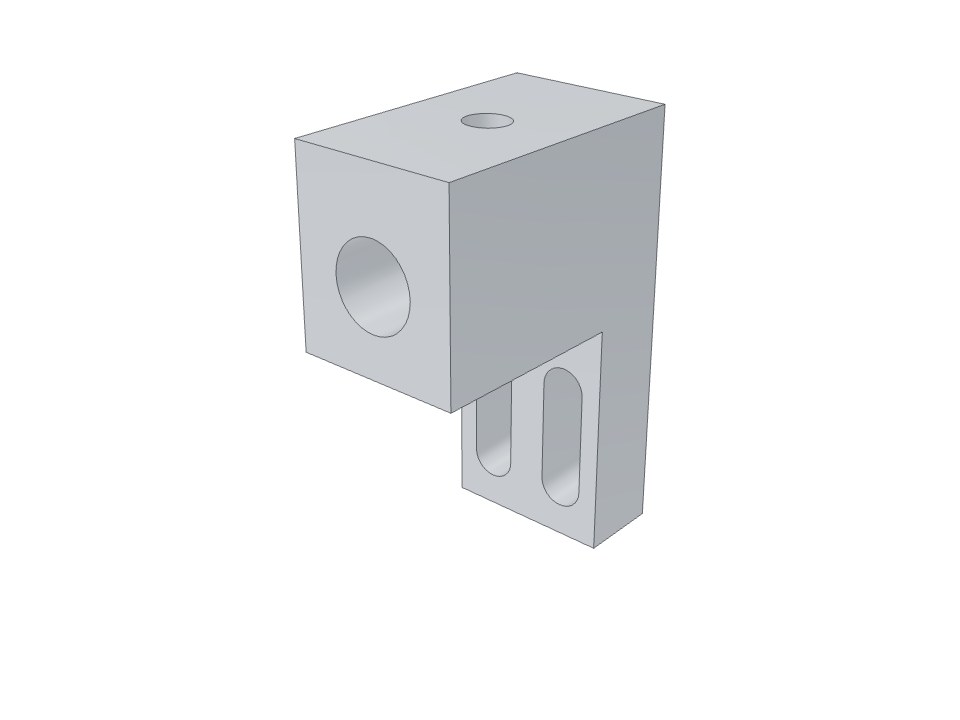

3D model: aLIGO sprocket bracket D060001

Drag with the mouse or a finger to rotate the model.

ClassSimple$8
Dimensions checked17
Build time12min

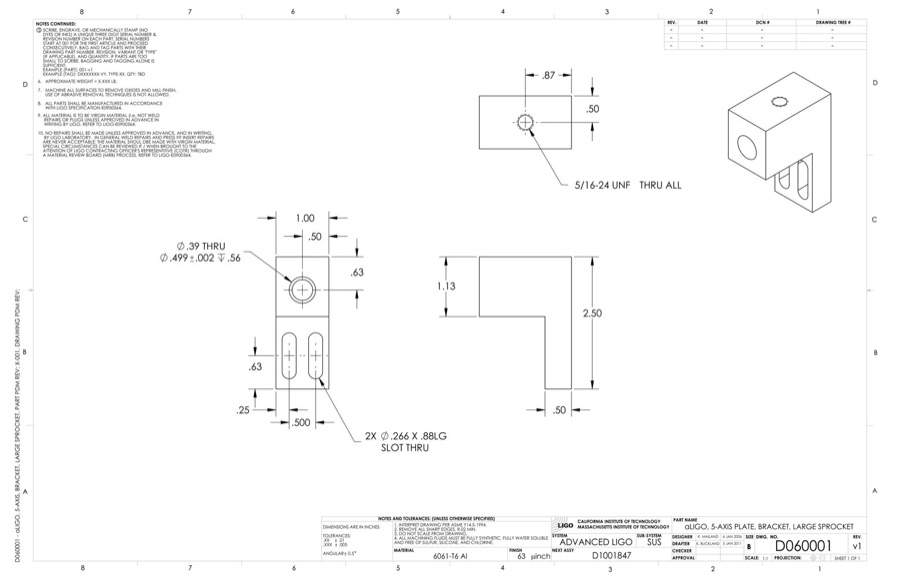

Drawing: aLIGO sprocket bracket D060001
Drawing

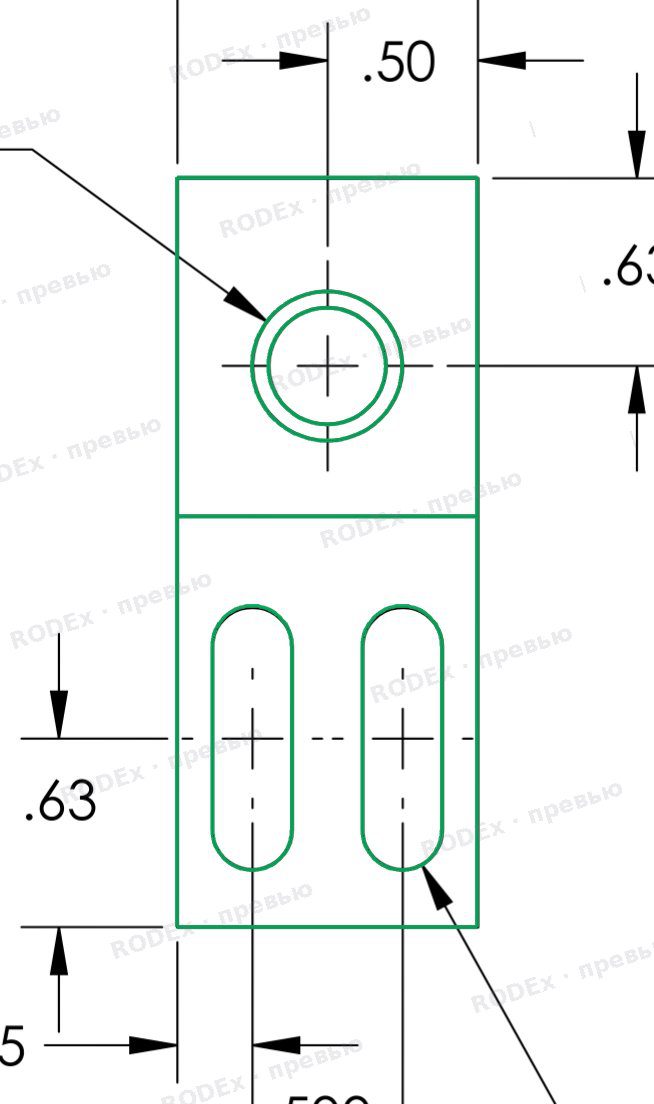

Model overlaid on the drawing: aLIGO sprocket bracket D060001
Model over the drawing

Source drawing — open source. We never publish client drawings in the library.
