Upper skirt (sheet metal)

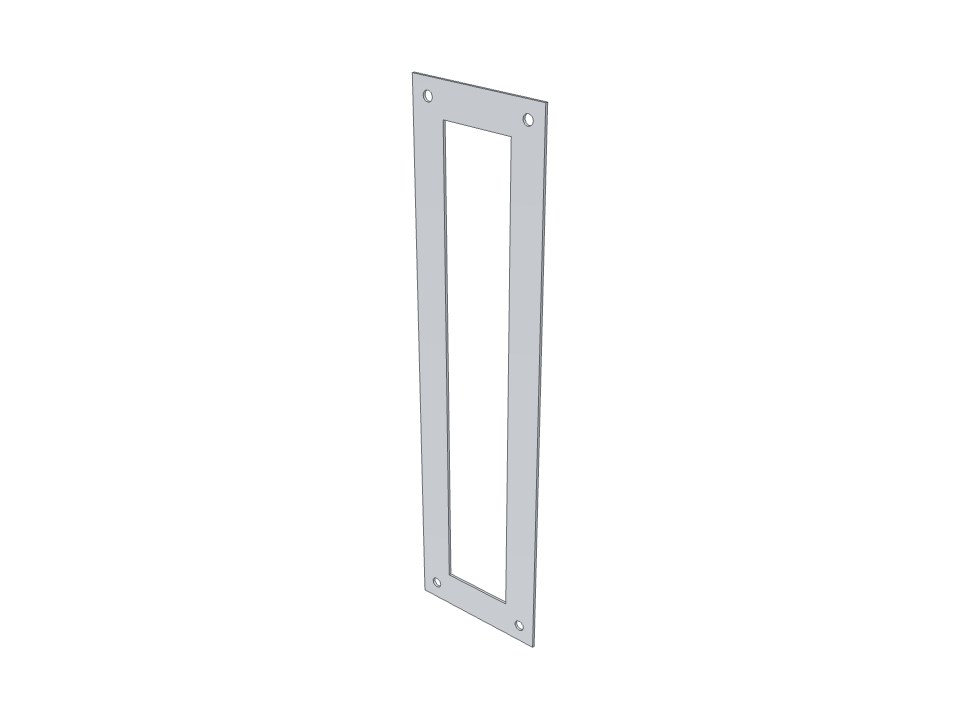

3D model from a drawing: every drawing dimension measured on the model.

vector PDFsheet metal

Drag with the mouse or a finger to rotate the model.

ClassSimple$8

Dimensions checked7

Build time9min

The question

The sheet thickness is not given on the drawing.

What we did

We took 1.5 mm — the mass then matches the title block (0.165 vs 0.16 kg). A 1.4 mm variant is built too.

Result

Done: the model is built, every dimension checked.

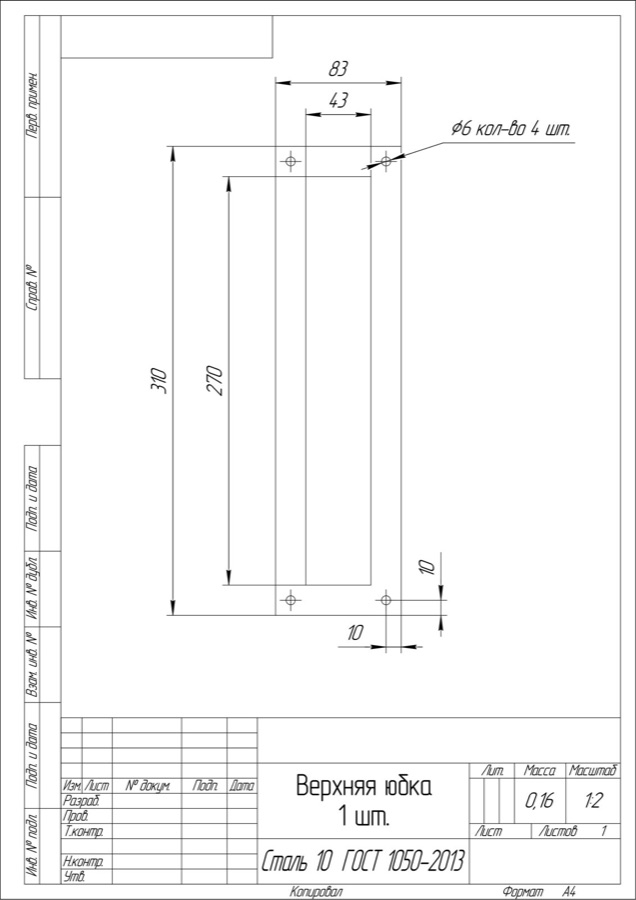

Source drawing — open source. We never publish client drawings in the library.
