Shell NW160x200 (vessel), 316L sheet 2 mm

3D model from a drawing: every drawing dimension measured on the model.

DXF/DWGsheet metalflat pattern

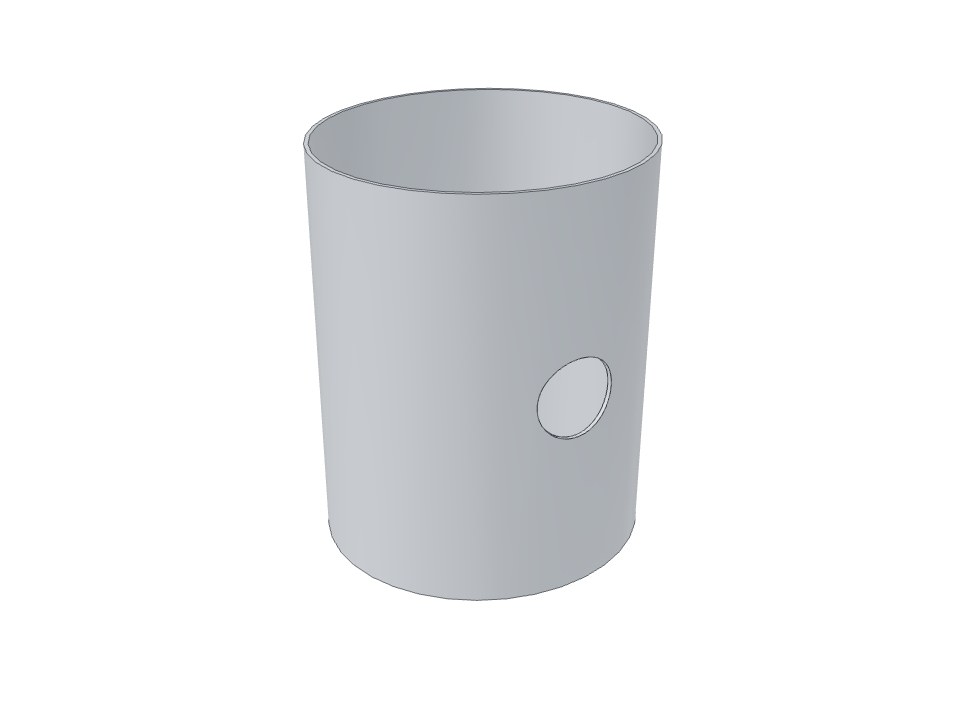

3D model: Shell NW160x200 (vessel), 316L sheet 2 mm

Drag with the mouse or a finger to rotate the model.

ClassSimple$8
Dimensions checked10
Build time23min

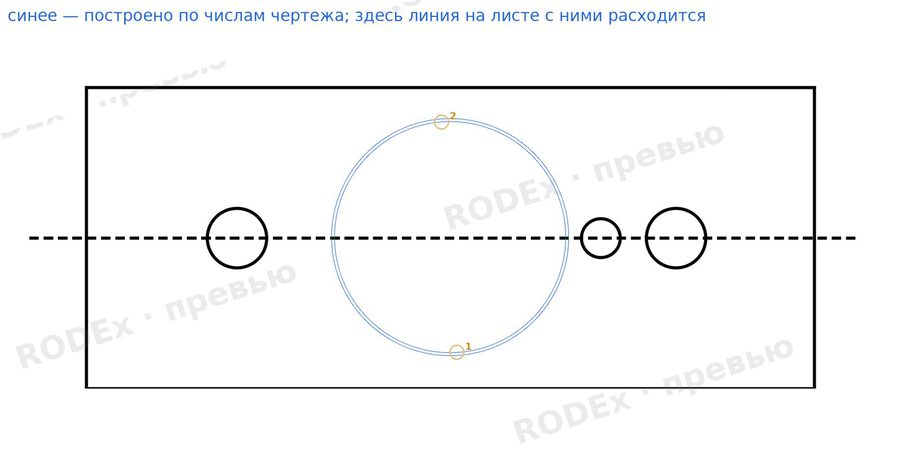

Model overlaid on the drawing: Shell NW160x200 (vessel), 316L sheet 2 mm
Model over the drawing
The question

The blank length 483.8 mm is the circumference of the inner Ø154. For an outer Ø158 with 2 mm sheet it must be 490.1 mm, otherwise a gap of about 6 mm remains at the seam.

What we did

Made the blank 490.1 mm for the outer Ø158 — no gap at the seam; the 483.8 variant is ready too.

Result

Done: the model is built, every dimension checked.

Source drawing — open source. We never publish client drawings in the library.
