Vent handle MPST.01.01.02 (cast iron SCh25)

3D model from a drawing: every drawing dimension measured on the model.

vector PDFcasting

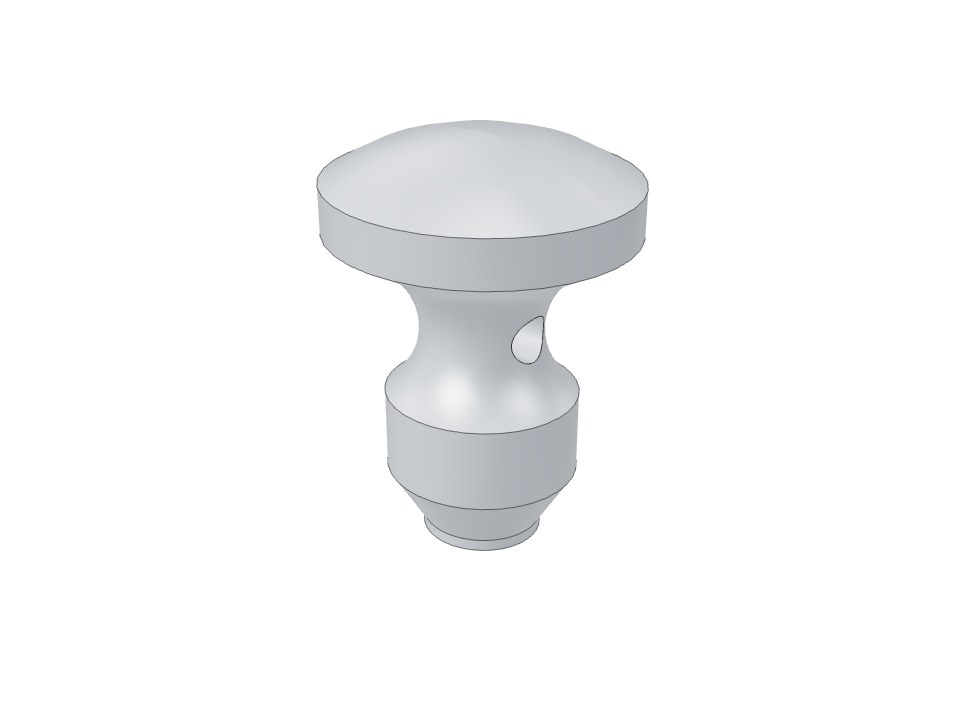

3D model: Vent handle MPST.01.01.02 (cast iron SCh25)

Drag with the mouse or a finger to rotate the model.

ClassSimple$8
Dimensions checked14
Build time12min

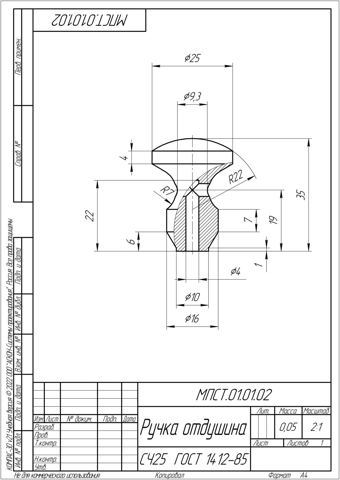

Drawing: Vent handle MPST.01.01.02 (cast iron SCh25)
Drawing

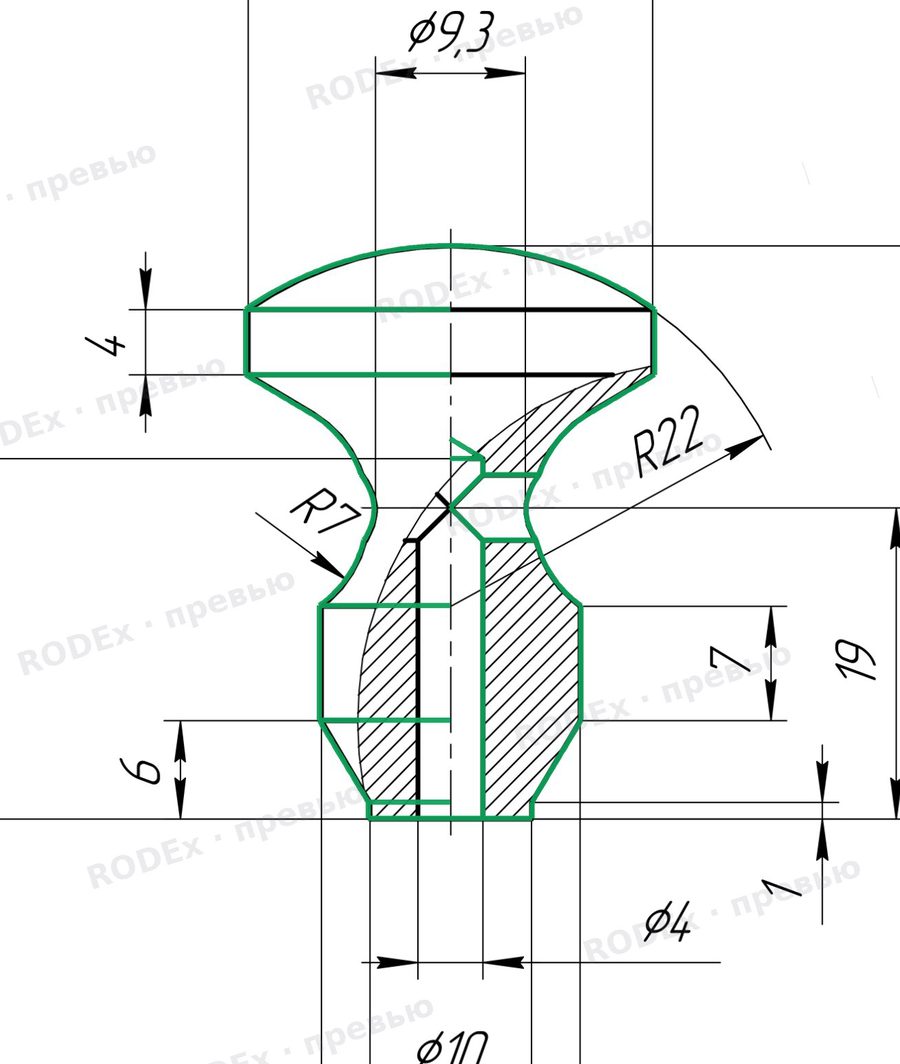

Model overlaid on the drawing: Vent handle MPST.01.01.02 (cast iron SCh25)
Model over the drawing

Source drawing — open source. We never publish client drawings in the library.
