D1000536 v3 baffle brace bracket

3D model from a drawing: every drawing dimension measured on the model.

vector PDFsheet metalAmerican drawing (inches)

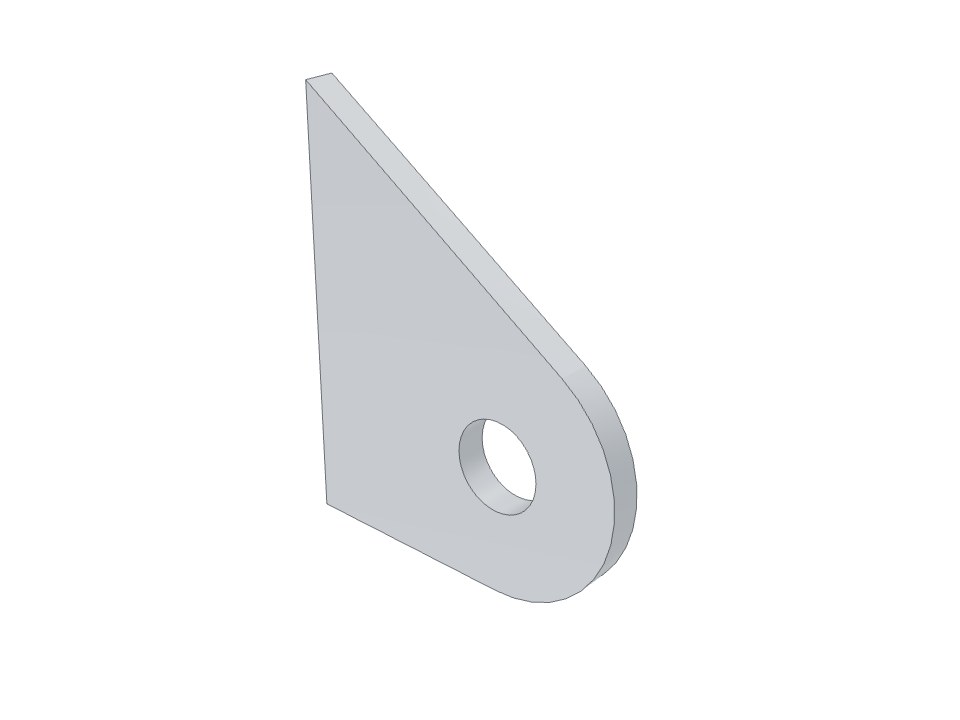

3D model: D1000536 v3 baffle brace bracket

Drag with the mouse or a finger to rotate the model.

ClassSimple$8
Dimensions checked6
Build time9min

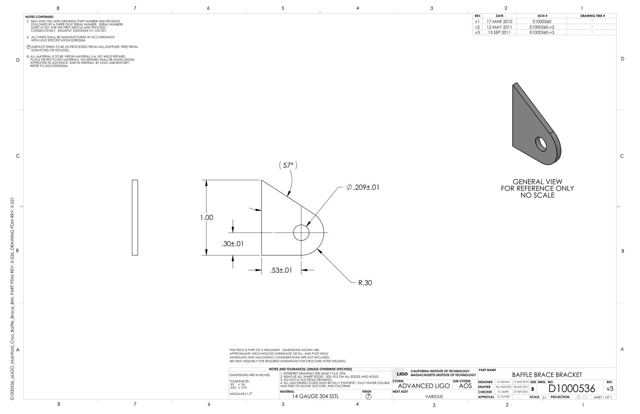

Drawing: D1000536 v3 baffle brace bracket
Drawing
Model overlaid on the drawing: D1000536 v3 baffle brace bracket
Model over the drawing
