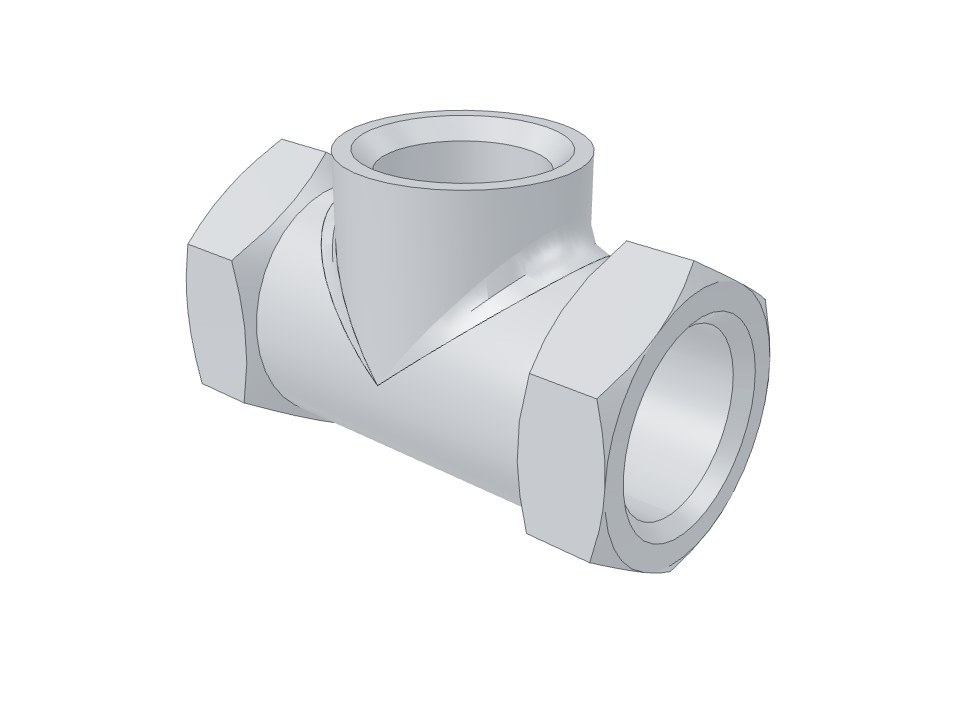

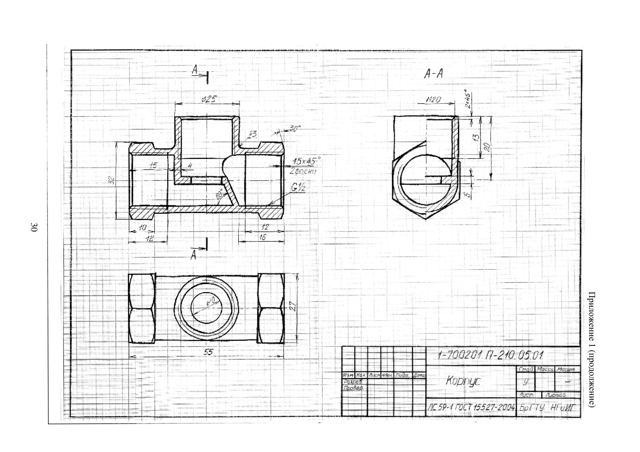

Valve body 1-700201.P-210.05.01 (brass LS59-1)
3D model from a drawing: every drawing dimension measured on the model.
ClassSimple$8
Dimensions checked21
Build time61min
The question
The hexagon “27 across flats” and “32 across corners” contradict each other: a 27 mm hexagon is 31.2 mm across corners. Built as 27 across flats; the “32” variant is ready too.
What we did
Built “27 across flats”; the “32 across corners” variant is ready too.
Result
Done: the model is built, every dimension checked.
