Library example

Flange IABE.741334.011

3D model from a drawing: every drawing dimension measured on the model.

scan

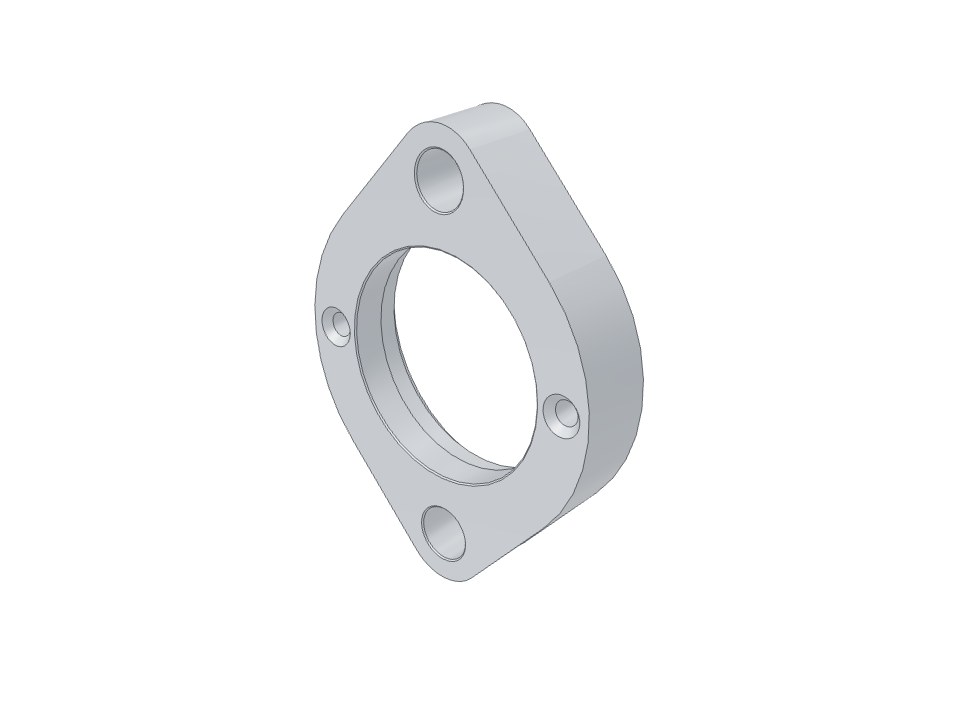

3D model: Flange IABE.741334.011

Drag with the mouse or a finger to rotate the model.

ClassSimple$8
Dimensions checked18
Build time40min

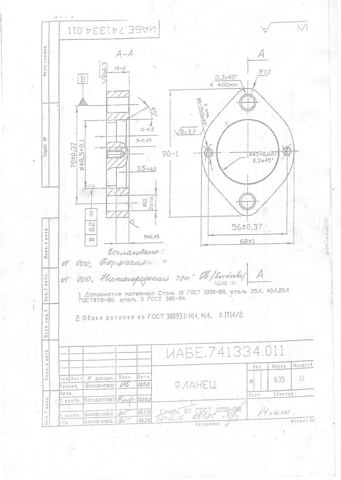

Drawing: Flange IABE.741334.011
Drawing

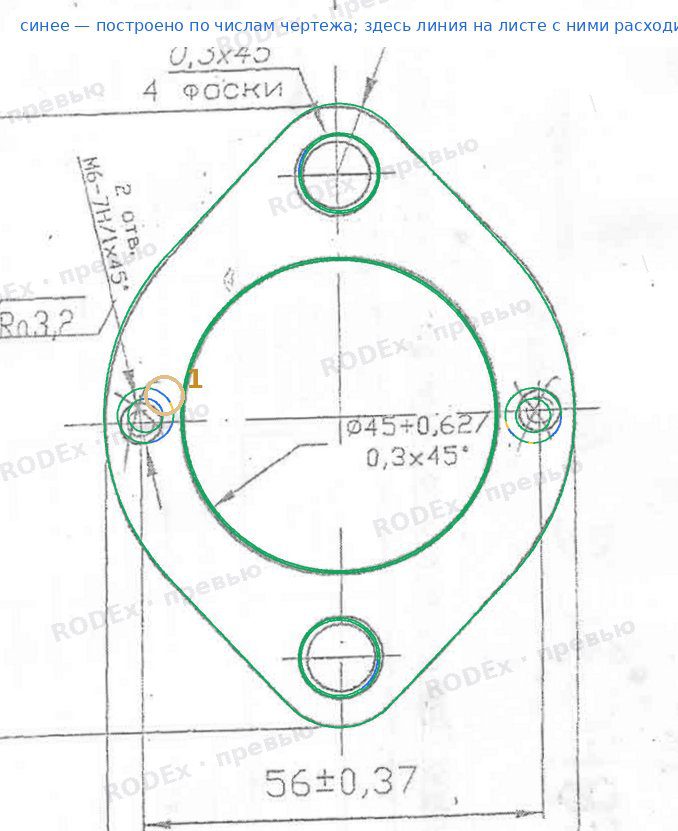

Model overlaid on the drawing: Flange IABE.741334.011
Model over the drawing
The question

The title block says 0.35 kg, but the part built to the drawing weighs 0.268 kg — 23% less. No dimension explains it: maybe the title block shows the blank mass.

What we did

The model follows the drawing dimensions exactly (0.268 kg); the difference with the title-block mass is asked as a question — it may be the blank mass.

Result

Done: the model is built, every dimension checked.

Source drawing — open source. We never publish client drawings in the library.
