Worm shaft (Schneckenwelle), 16MnCr5

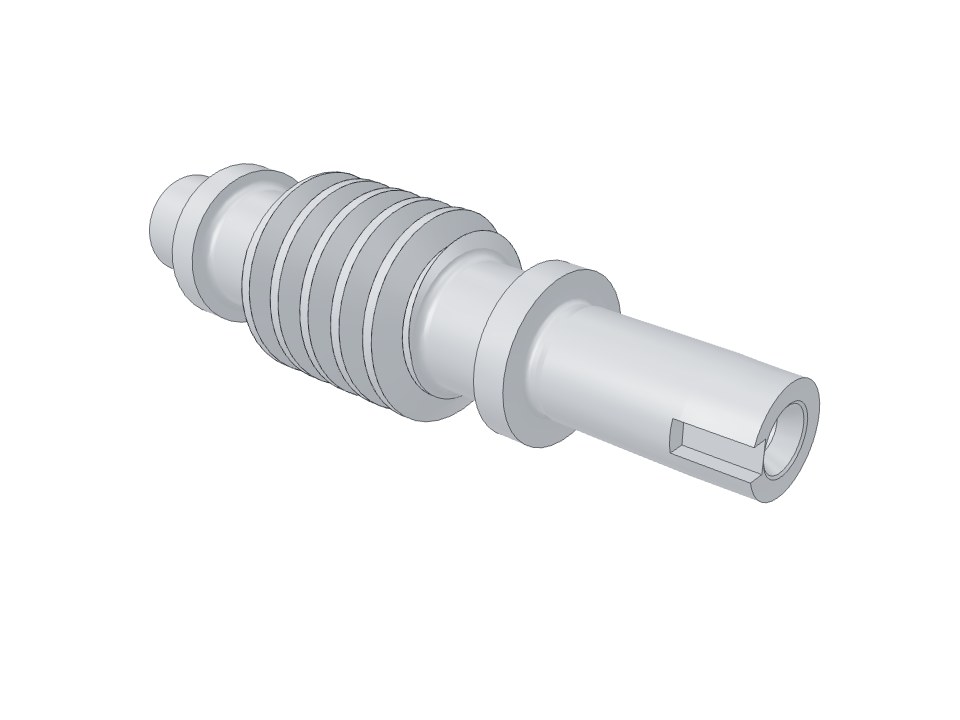

3D model from a drawing: every drawing dimension measured on the model.

scangears/worm

Drag with the mouse or a finger to rotate the model.

ClassMedium$15

Dimensions checked36

Build time92min

The question

The drawing does not state the thread profile angle or type. Built with 20°, ZA profile — the most common; another angle we rebuild.

What we did

Built a ZA profile at 20° — the most common one; another angle we rebuild.

Result

Done: the model is built, every dimension checked.

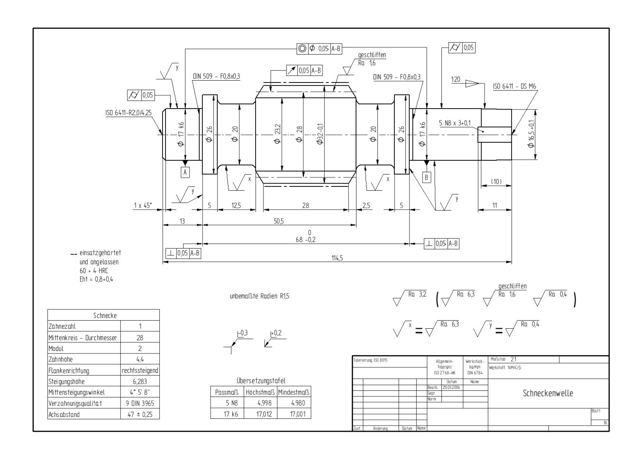

Source drawing — open source. We never publish client drawings in the library.

A similar drawing?

Send yours — we show the model and the dimension check for free
