Fitting 1-700201.P-210.05.02 (brass LS59-1)

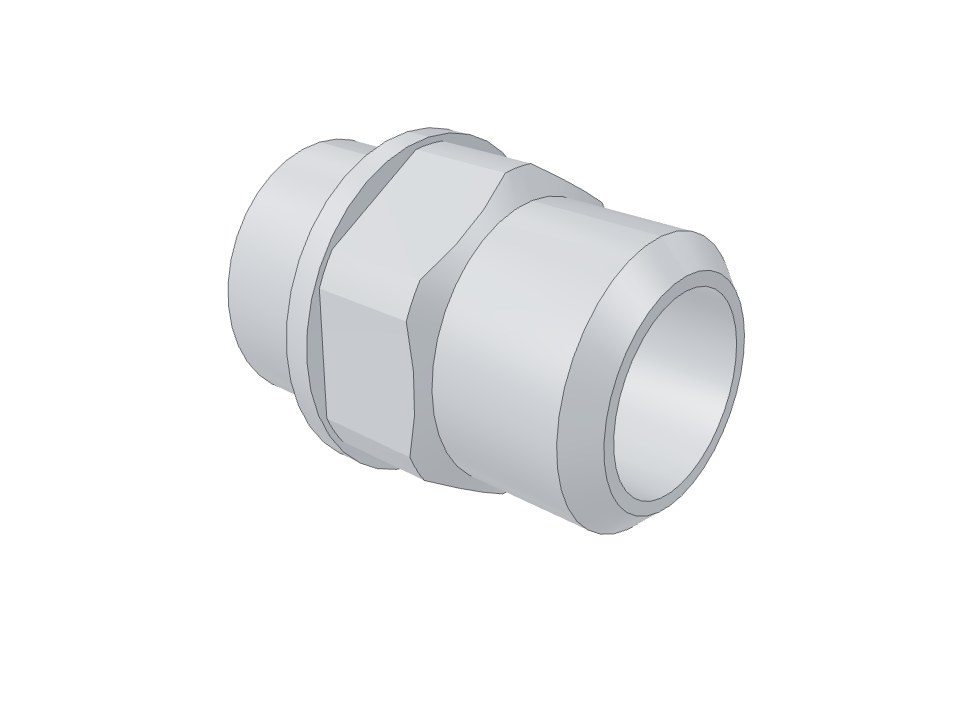

3D model from a drawing: every drawing dimension measured on the model.

hand sketch

Drag with the mouse or a finger to rotate the model.

ClassSimple$8

Dimensions checked20

Build time27min

The question

Two places on the sketch can be read two ways — a chamfer and a hexagon. Built to the most likely reading; the other variant is ready too.

What we did

Built the most likely reading; the second variant is ready too.

Result

Done: the model is built, every dimension checked.

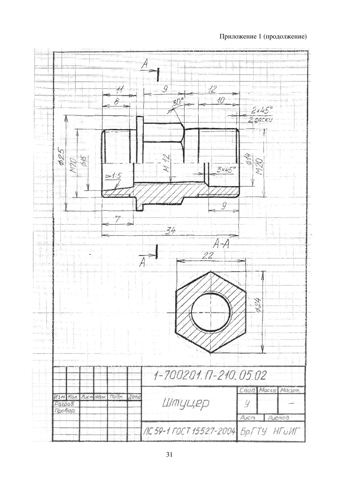

Source drawing — open source. We never publish client drawings in the library.

A similar drawing?

Send yours — we show the model and the dimension check for free
